Descriptions
A three-phase asynchronous motor is utilised to control the rotational speed and the vacuum is controlled by a single-stage rotary vane vacuum pump to ensure stable and reliable performance. Under vacuum conditions, the high-speed rotation of the paste can effectively remove the adulterated air and realise the high efficiency of debubbling of the recycle paste.
Product Specifications

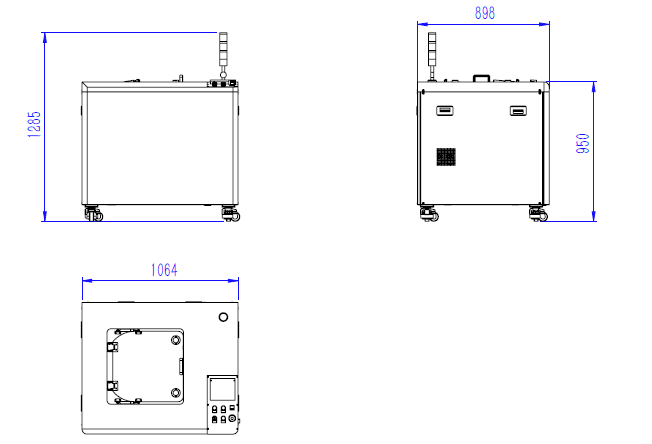

Equipment Size | 1074*898*989mm |
Equipment Weight | 400KG |
Vacuum | ≤ -99.5kpa |
Adjustable Speed Range | (50–950) RPM (recommended maximum operating speed: 800 RPM) |
NO. of Cartridge | 560g × 6 pieces / cycle (weight deviation per piece: ±2g) |
Cartridge Size | φ43×330mm |
Production Capacity
20 min/cycle | Paste : 0.5kg/unit (6 units can be removed at a time) | |
Capacity (KG) | Speed (rev/min) | |
Hourly Capacity | 9 | 800 |
Daily Capacity (22 hours) | 198 | 800 |
Monthly capacity (26 days) | 5148 | 800 |
