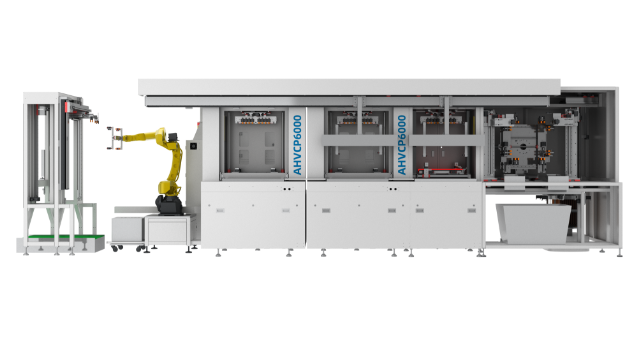

Non-contact Core layer via filling
Partical-Free Industrial Design
Dual- Mode Workstation with Manual/Automatic Switching
R&D for FC-BGA and High Aspect Ratio ATE
Designed for carrier plate factories, it adopts automated linkage and contactless production technology to ensure quality stability and equipment reliability during the production process
Industry-first automated hole plugging equipment improves productivity and work efficiency
By optimising processes, energy and raw material consumption is saved and sustainable development is achieved
Ensures consistent product quality and intelligent production
Product Specifications
| Machine Size | 9420*2850*2595mm |
| Vacuum | ≤ 100pa（Atmospheric pressure） |
Panel thickness | 0.2-10mm |
Panel Size | MIN:510*510mm MAX:510*635mm |
Aspect Ratio | Through hole: 40:1 (Max.) Blind hole: 1:1 (Max., hole size after plating) |
Diameter of plugging holes | Through hole: 0.1-1.0mm (hole diameter after plating) Blind hole: 0.1-1.0mm (hole diameter after plating) |
Plugging method | Full plate plug holes (top to bottom) |
Plugging speed | 2-80mm/sec( adjustable） |
Plugging Hole Pressure | 0-6kgf（adjustable） |
Noise (normal operation) | ≦ 75dB |
Paste pressure | Cylinder push force: 0-6kgf (adjustable) Pneumatic push force: 0-6kgf (Use does not exceed 3kgf) |
Plugging holes and plate edge spacing | Hole distance from plate edge ≥ 15mm |
Operation Panel | Touchscreen and mobile screen operation |
Protection Device | Safety light curtain, emergency stops |
Paste adding methods | Vacuum LCS Automatic Resin Supply + Cartridge Resin Feeding |
Failure rate | ≦ 1/400h（Failure time/equipment uptime) |
Height of operating table | 1000±100mm |
Scraper speed | 5-200mm/sec（adjustable） |
Scraper pressure | 0-6kgf（adjustable） |
Production Capacity
| Capacity is affected by aspect ratio (panel thickness, aperture diameter), paste viscosity. | One plugging and one ES unit | Two plugging and one ES unit |
| Capacity per hour | 15–19 PNL/H | 28–34 PNL/H |
Communal Requirement
Electrical requirements | |
Electric | Three-phase five-wire 380V |
Pressure of compressed air | ≧ 6.5bar |
Power (output) | 26KW |
With pumping station exhaust volume | 32m³/h（Interface：φ75mm²)、total 2 units |
Compressed air consumption | 17m³/h（interfaces：φ10mm） |
One Ice and Water Dispenser 3L/Min 15℃ -7L/Min 30℃, two unit in total | |
Recommended space around machine | 800mm |
Weight | 6227KG（One plugging unit about 2000KG） |
Equipment installation environment (temperature,humidity and dust-free requirements) | A. Environmental requirements: clean room, 100,000 level ↑ . B. Temperature requirement: 22±2℃ . C. Humidity requirements: 50±5% |
